Visualisation
Loupe360 provides a web-based dashboard to visualise, manage, and analyse survey data. It displays "at-a-glance" metrics on tunnel conditions and offers tools for in-depth analysis and comparisons.
Use the dashboard to maintain high-quality records with its virtual inspection and data management features.
Our other services
Use any combination of our services to best suit your needs. Loupe360 was built to support data from a variety of sources to allow you to capture your own data. Please Enquire if you have any questions.
Why use the Loupe360 dashboard?
Loupe360 transforms your data into actionable insights to make it work for you
Reduced costs from predictive maintenance
Gain rich insights into a tunnel's condition and make point-in-time comparisons using our visualisation and analytical tools. Use this information to make informed decisions about predictive maintenance.
Moving from a reactive to predictive maintenance approach optimises your resources and prolongs the life of your asset. Ultimately, reducing maintenance costs and improving the reliability of your service.
Centralised location for your data
Store all your data in one place with Loupe360 for efficient record keeping and accessibility of information. Managing data from a centralised location improves data integrity as there is a single point of reference that can be easily maintained.
Loupe360 creates a source of truth for your assets which is key for making data-driven decisions.
Correlated data sources
Loupe360 draws upon multiple data sources to empower you with information. Traditionally, correlation is a time-consuming manual process where data must be found and interpreted.
For example, you can investigate an increase in the number of defects at a specific location with Loupe360 by drawing on the geology information and the defect count in previous surveys.
Discover Loupe360's Features
Click on a feature to learn about its usage and how it can support your workflows
Data visualised
We draw data from multiple sources to support analysis. This can come from our data capture service or you can provide your own data

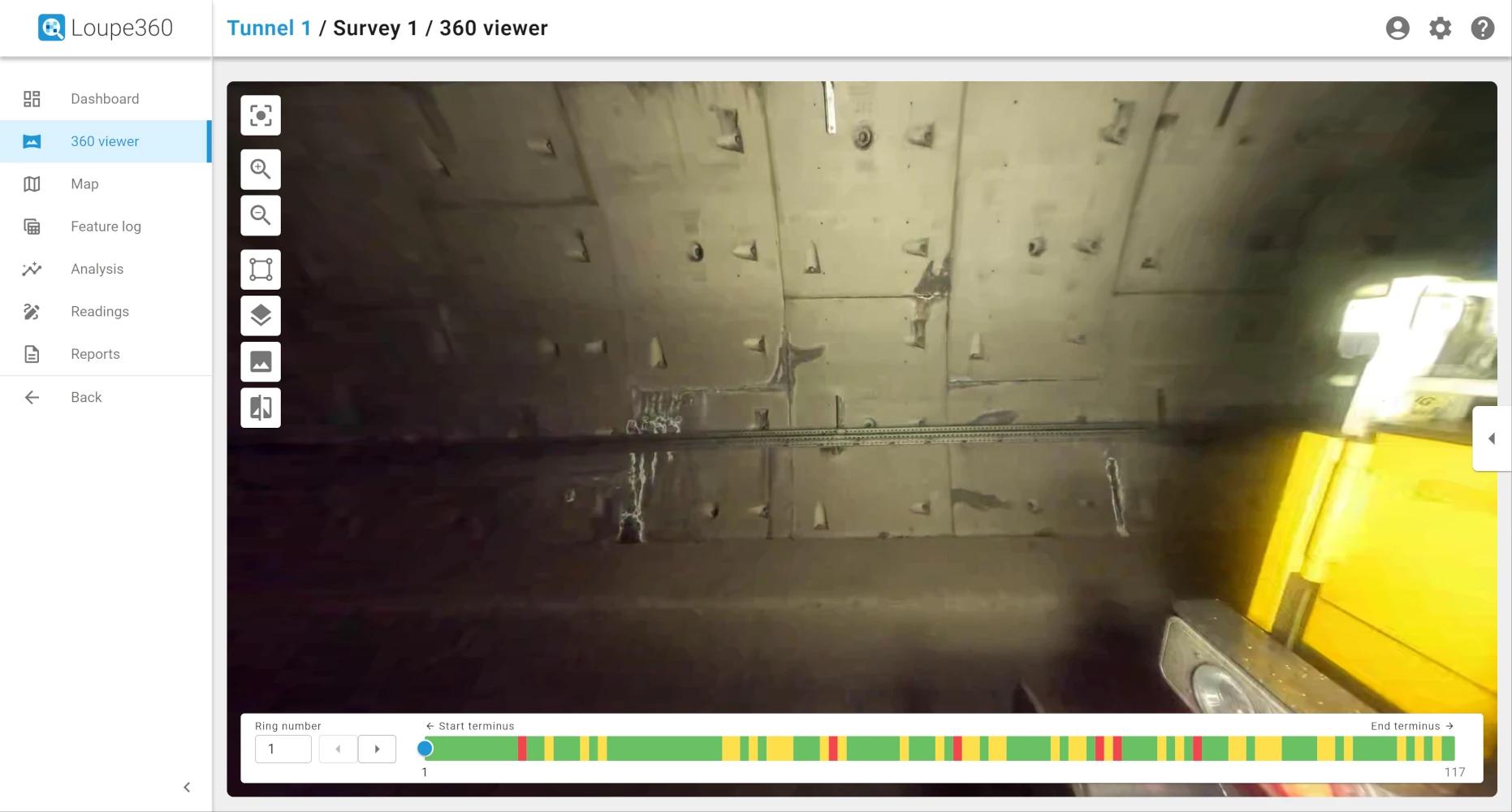

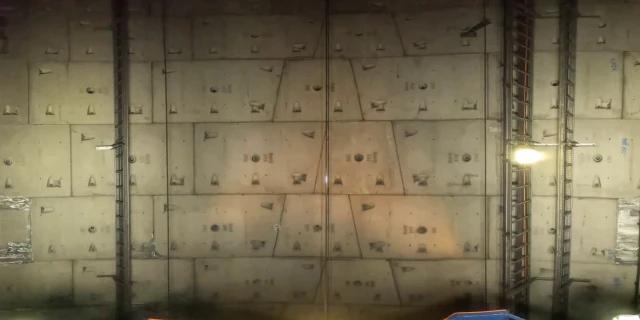

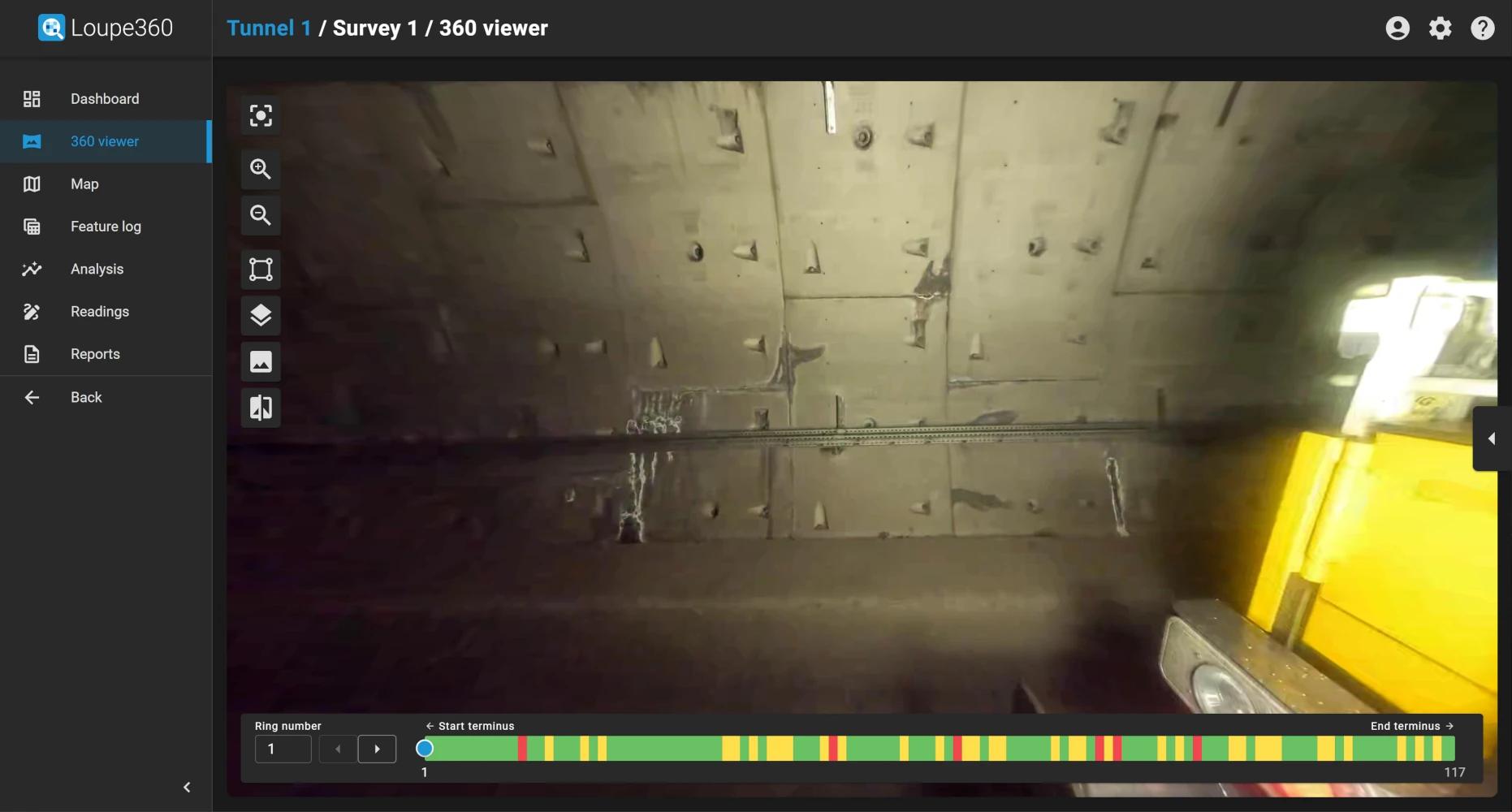

360 imagery
High resolution 360 degree images that provide a visual representation of a tunnel's condition.

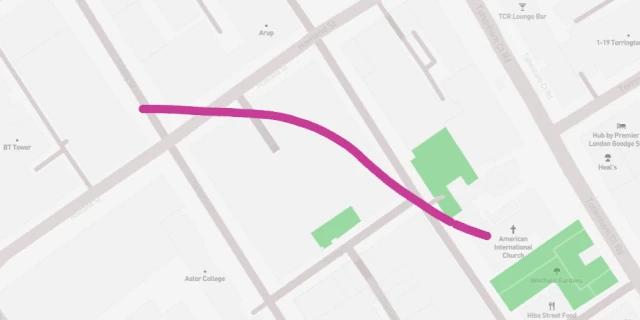

Geolocation
All data is geolocated with a ring number, latitude/longitude, and/or chainage.
Defects
View the defects identified during a survey in a variety of useful formats to extract insights.

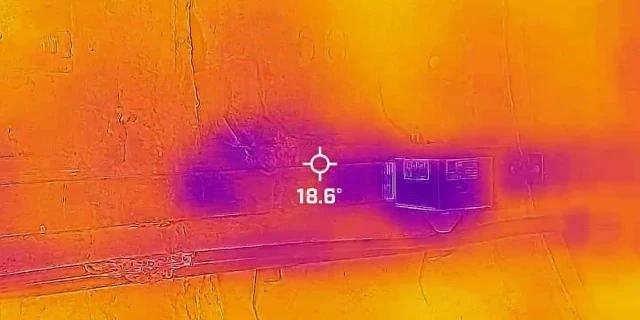

Sensor data and thermal imagery
Temperature, humidity, and thermal imagery provides additional information on the surveyed environment.
Lidar (Coming soon)
A 3D representation of a tunnel to better visualise its condition and make accurate measurements.
Loupe360's core concepts
The condition rating and asset management systems are fundamental to how Loupe360 operates

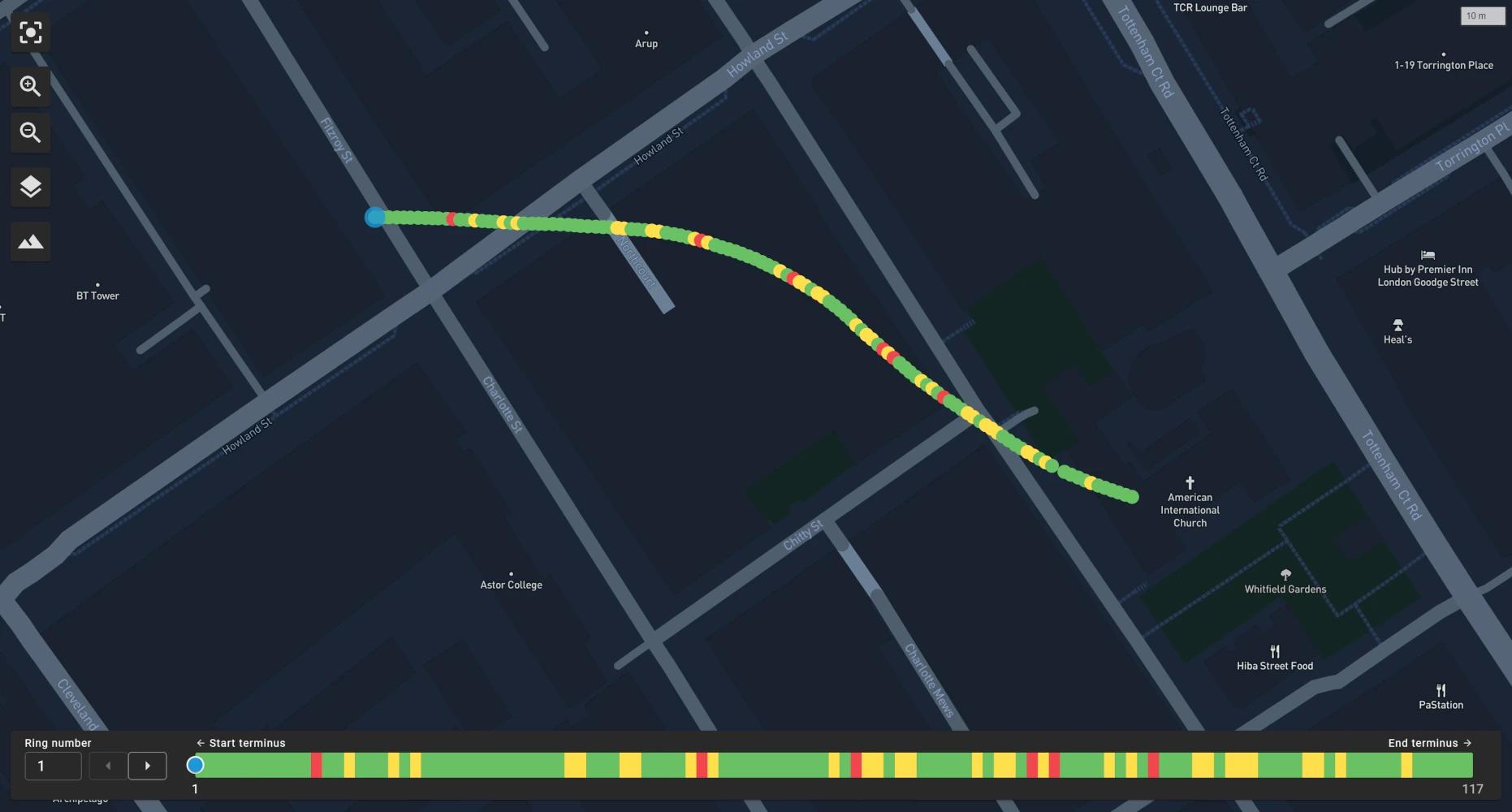

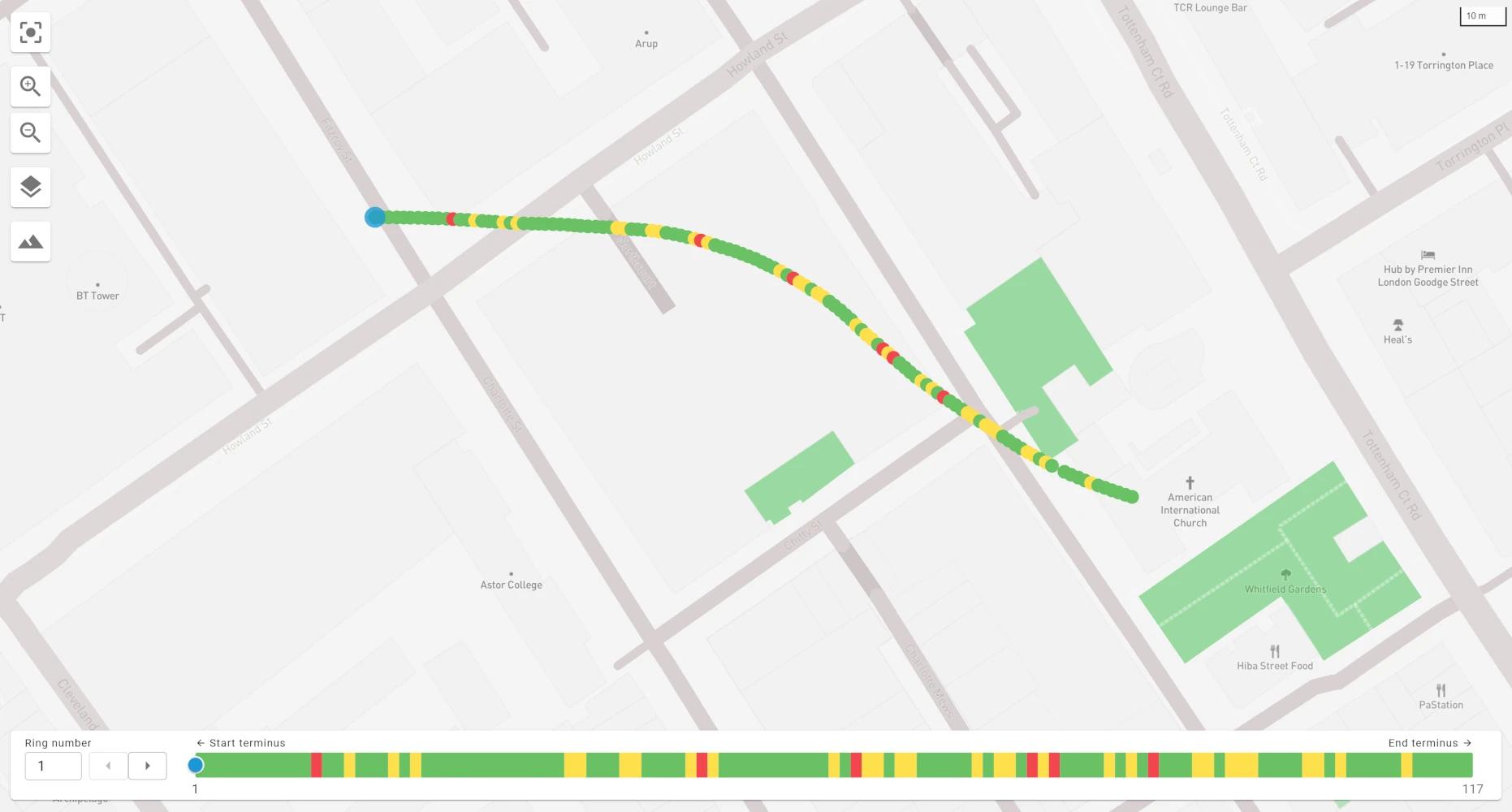

Red-amber-green (RAG) rating
We use a red-amber-green (RAG) rating throughout the dashboard to quantify a tunnel condition.
Paired with the machine learning results, the RAG rating provides a great visual metric that highlights sections of tunnel the require investigation.

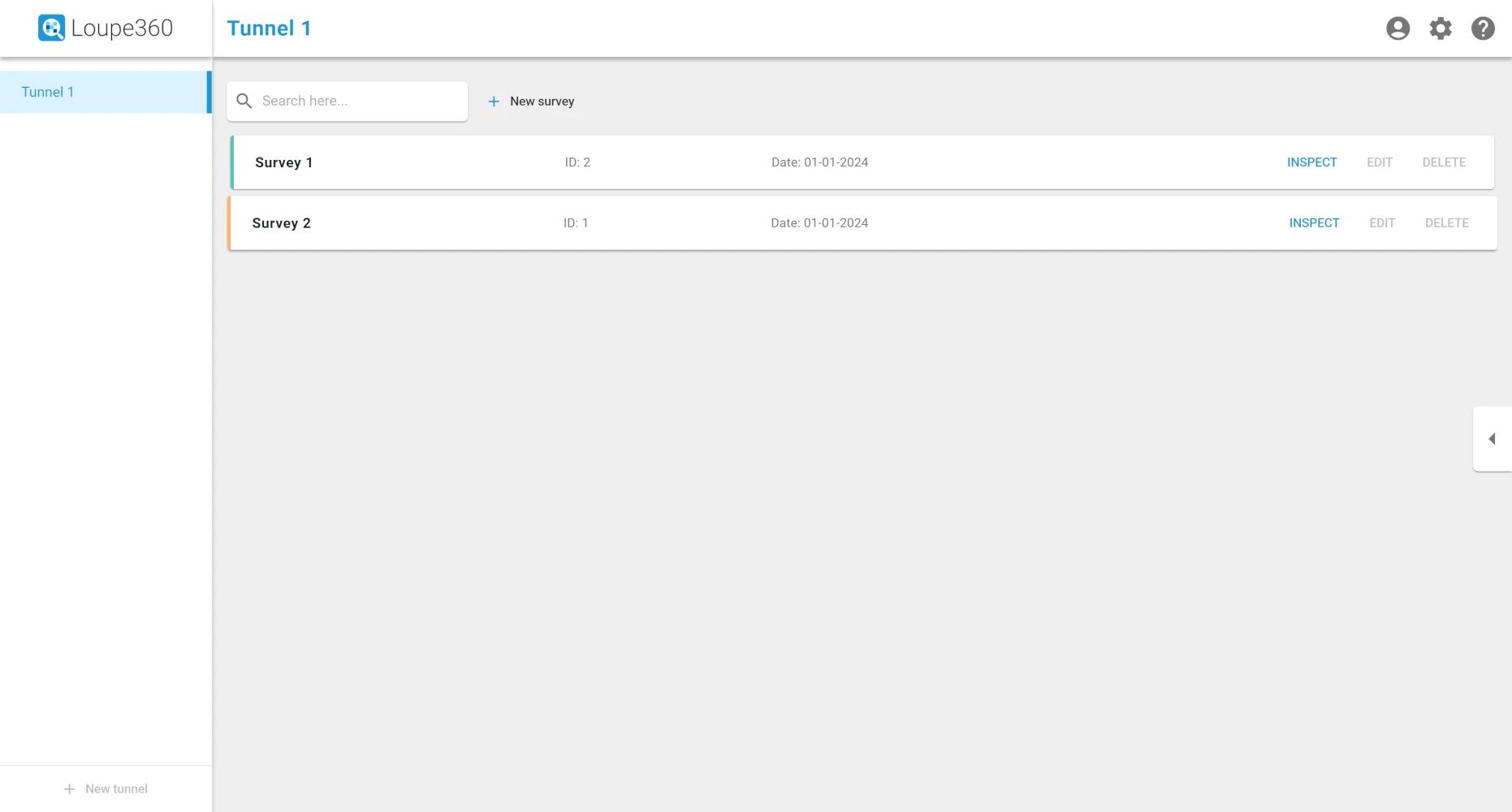

Asset management
Each survey is assigned to a tunnel to help you organise surveys and maintain a digital record of your tunnels.

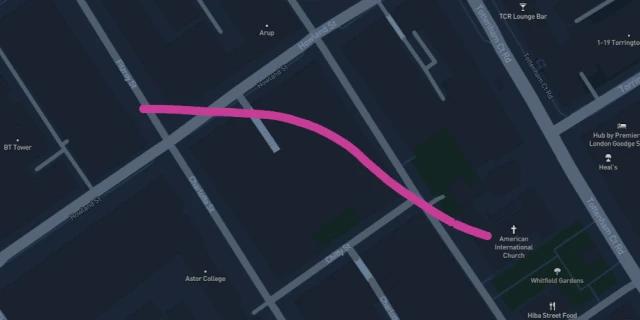

When first entering the application, you can locate your tunnels on a map or in a list view. On selection of a tunnel, a list of the surveys performed is shown and each survey can be inspected using the features described above.
Survey data can be upload via the dashboard to initiate a new survey, see Data processing.
Demo
Try the demo
